![Aluminum Alloy Desk Hidden LCD Lift BLL45-22](jpg/b8deec8b08b14cc36d9f1c463148a406.jpg.thumb.jpg)
Computer LCD motorized lift is a new design of electrical lifting monitor mechanism with screen tilting function. It’s a hidden equipment for audio video conference system.
Name: | Tabletop LCD Monitor Lift BBL-19 |
---|---|
Model No:: | BBL-19 |
Style: | Motorized monitor lift |
Power: | 20-25W |
Color: | Black/ Silver |
Material: | Aluminum Alloy |
Suitable Size: | 19 inch LCD screen |
Panel Thickness: | 5mm |
Panel size: | 550*160*5mm |
Box Size: | 535*145*655mm |
Monitor Pitch Angle: | 0~15 Degree |
Swtich: | touch button+wireless remote |
Voltage: | 110V-240V |
Interface: | VGA/HDMI +RS232 I/O |

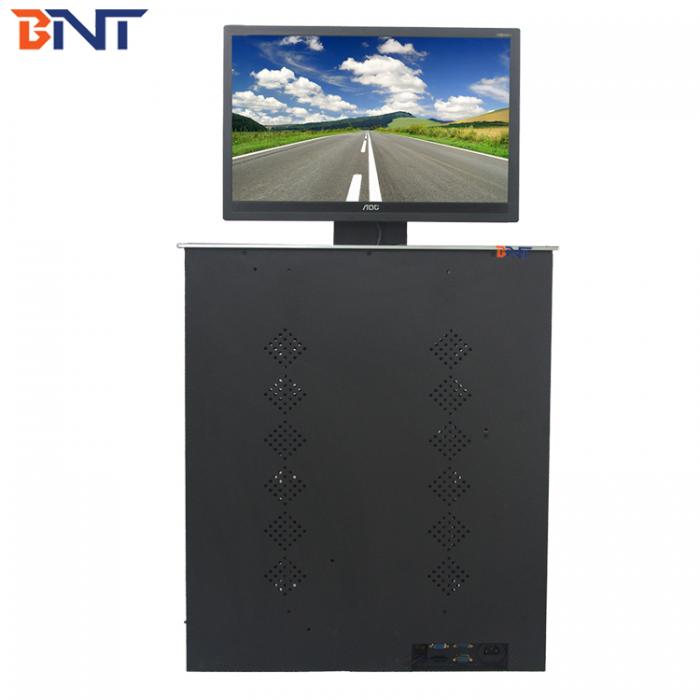

Tabletop LCD Monitor Lift BBL-19
Introduction:
Pop up lcd screen lift system is advance hiding equipment designed for audio video system in office furniture. The LCD screen of Pop up lcd screen lift system k could be rising down into the desk and hidden under the office table when unused; Screen inside Pop up lcd screen lift system would be rising up from table automatically by touch switch or remote control and present the workable screen on the desktop if used.

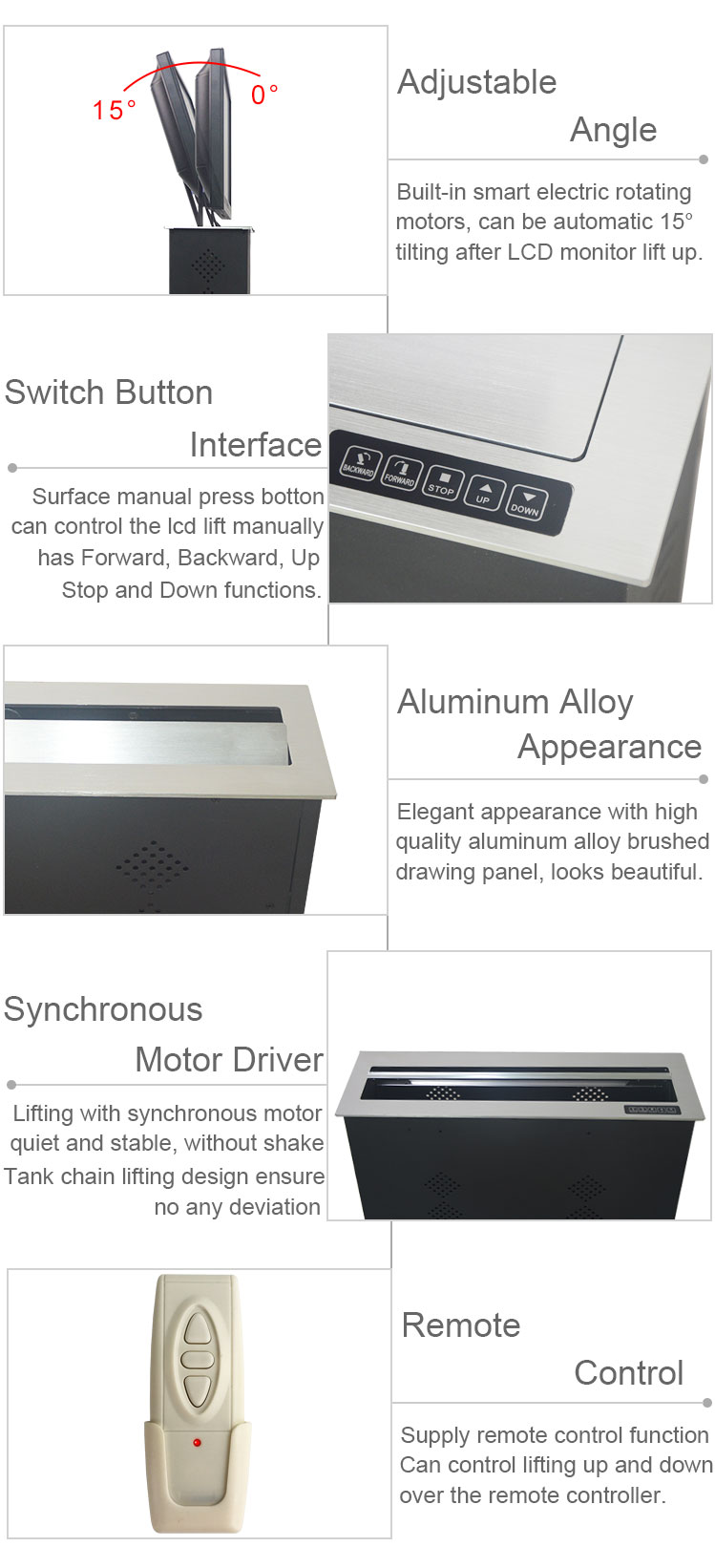

Feature:
1, The panel of LCD lift is aluminum alloy/steel stainless, with aluminum wire drawing process on surface.
2, The monitor lift adopts synchronous orbit lifting principle.
3, Electric LCD Jack works smoothly and quietly. Low noise which less than 30db.
4, Screen Lift provides protecting function of LCD monitors by cutting the electricity off automatically.
5, LCD monitor lift would be adjustable elevation angle of LCD monitor for protecting your eyes from the direct light.
5, Motorized LCD monitor lift is controlled by two big AC motors. One controls opening and closing the panel; one controls lifting the monitor up and down and adjust the angles of the monitor.
6, Control system: Touch Switch on monitor lift panel, RF remote control, RS232 AND rs 485 central control.
Application:

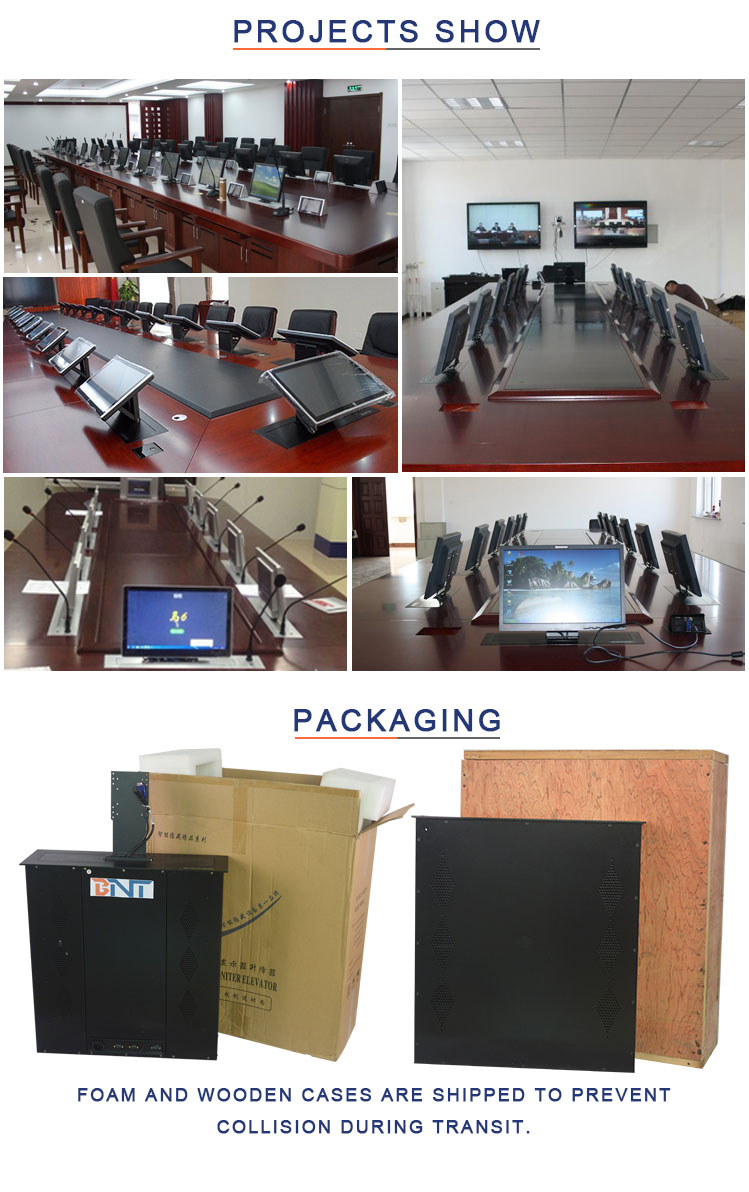

Pop up lcd screen lift system is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.

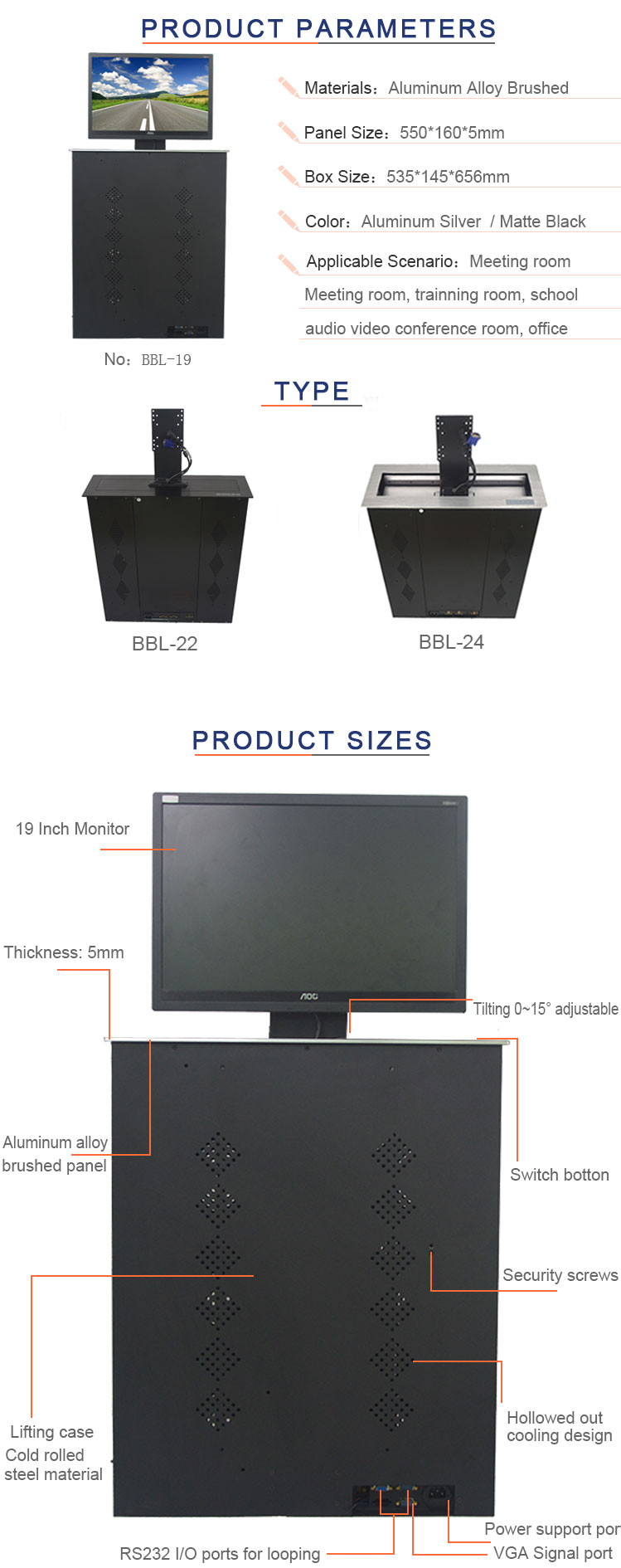

Detail Parameter:
Style | Motorized monitor lift |
Material | Aluminum alloy |
Panel Size | 490**160*5mm |
Box Size | 460*145*655mm |
Monitor Pitch Angle | 0~15° |
Color | Black/ Silver |
Interface | VGA/HDMI +RS232 I/O |
Control | Supplied with RF remote control |
Voltage | 110V~240V |
Power | 20-25W |
Computer LCD motorized lift is a new design of electrical lifting monitor mechanism with screen tilting function. It’s a hidden equipment for audio video conference system.
Computer LCD motorized lift is a new design of electrical lifting monitor mechanism with screen tilting function. It’s a hidden equipment for audio video conference system.
BLL-10.1 is a motorized tv lift mechanism fits monitor table pc 10.1inch for audio video system.
