Name:Flip Up Socket With Mobile Charger EK9810
Model No::EK9810
Type:Table wireless charge socket
Style:Motorized rotating power socket
Color:Silver/Black
Material:Aluminum alloy
Overturn angle:180 degree
Configuration:2*universal power+2*USB charger+1*network+1*hdmi+1*wireless charger
Panel size:350mm * 130mm
Box Size:345*102*98mm
USB Output:Double 2 USB charger 5V/2A​
Cable length:1.5m
Warranty:12 month
Application:Office table

Product Description

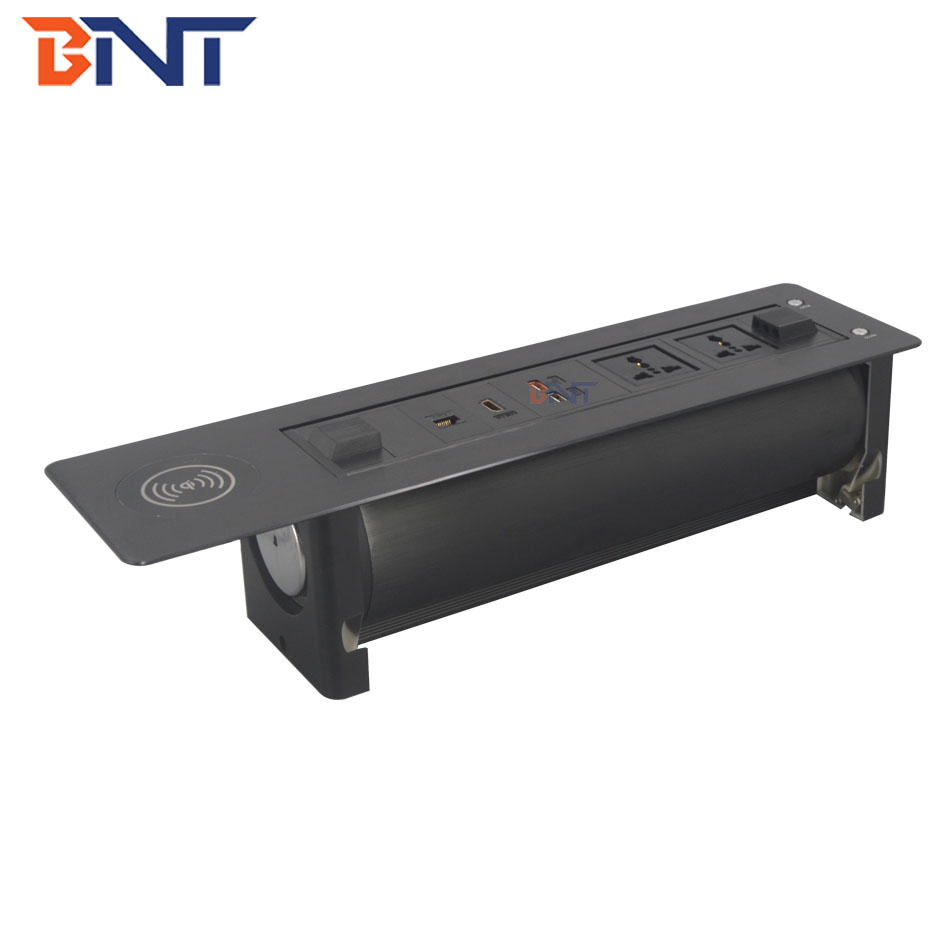

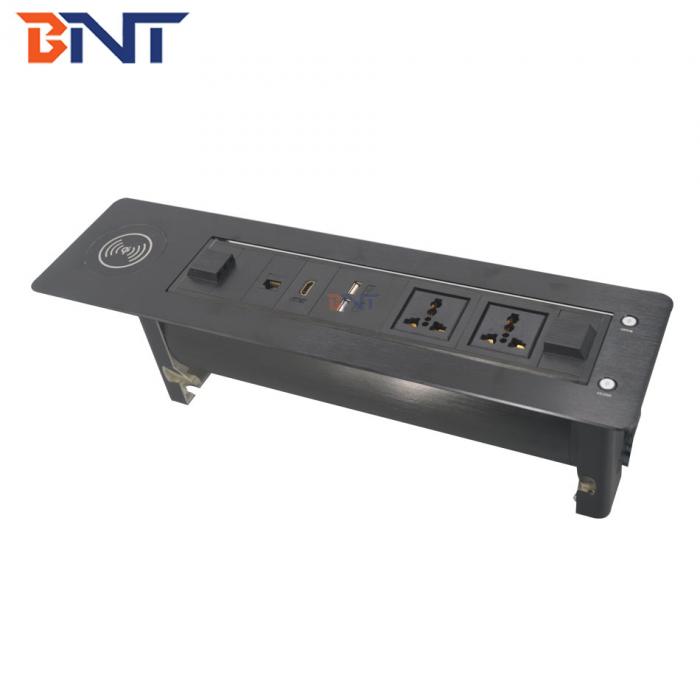

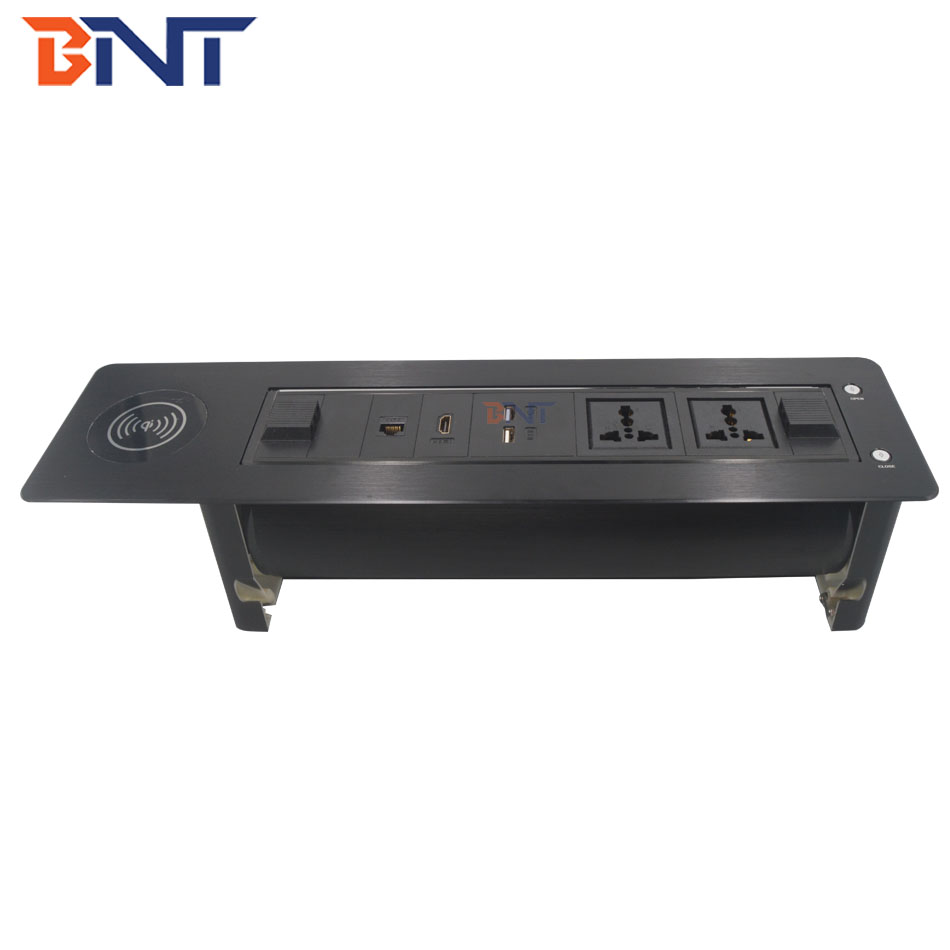

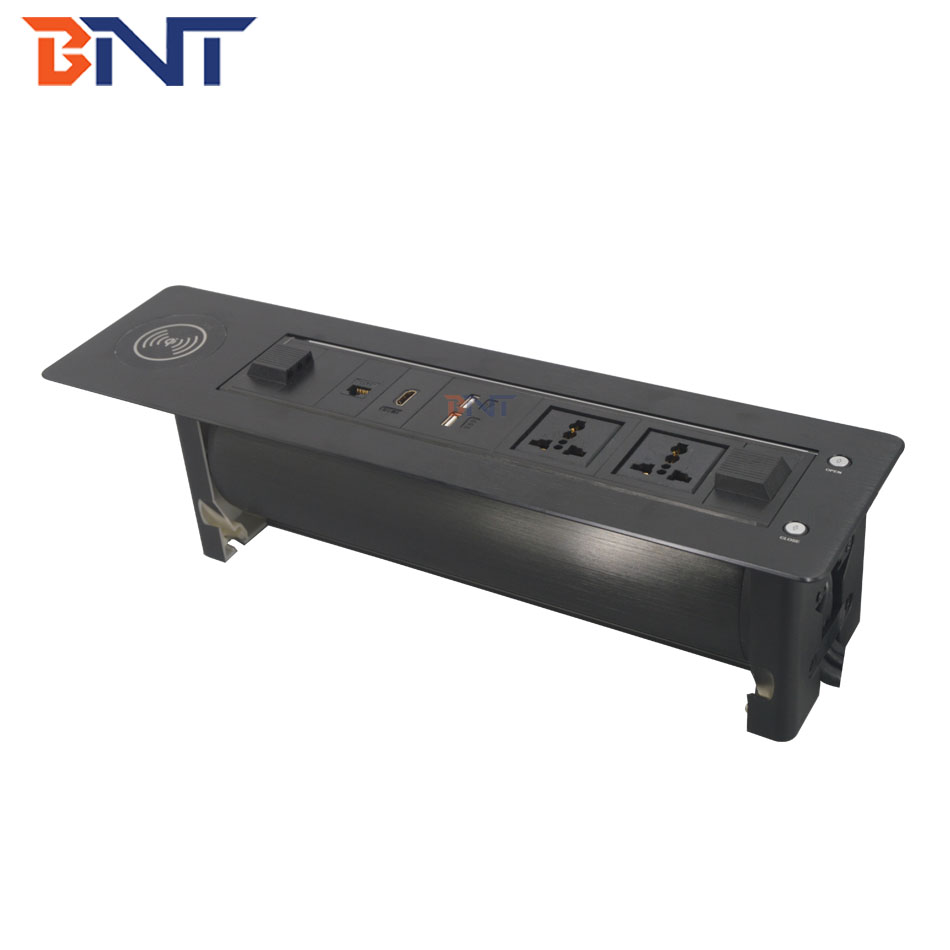

Flip Up Socket With Mobile Charger EK9810

Keyword: desktop socket,desk socket, desk outlet,table socket, tabletop socket, table outlet, desktop-power-socket, hidden socket, hidden-desktop-socket, manual-desktop-socket, wireless charge socket, Mobile charger socket, motorized flip up socket, electric rotatable socket


Introduction:

EK9809 desktop socket is designed as an motorized flip up socket socket with muti-functional configuration,

It is a hidden equipment as it is mounted on the tabletop to use and hidden into table when it is not be used.

Motorized rotate with 180 degree overturn angel, the socket is fliped up on the tabletop once control by the press button switch.

With the wireless charger connector, users could put the mobile on the charger to charge directly without wire.

For your selection, it also have USB charger connector for charging the mobile or other equipment by USB wire.

Other configuration of universal power socket, RJ11 telephone and RJ45 network plug,

Modular design can change to different modules as per your requirement.

It is a smart socket to make the electrical equipment connect easliy and conveniently.

Cover by the full aluminum alloy material, the socket is stable and good quality.

It’s widely used for the high-tier office table, conference room table AV solution, hotel room and training room.


Seiling Piont:

  1. Motorized flip up by motors,convenient to control

  2. With wireless charger, change the traditional charger power code for charging

  3. Hidden design to save more space and makes a modern office environment

  4. Competitive price and high quality

  5. Supply with double USB power charger(5V, 2.1A)

  6. Made by Aluminum alloy material, which is corrosion resistant, wear-resistant,smooth surface and not easy to scratch.

  7. The modules can be customized as the customer's requirement

  8. Cable length are available with different length to 1.0m ~ 5m

  9. Changeable configuraton with different modules for selection : HDMI, VGA, USB, Network, Audio, Video, Mic, RCA, power switch

  10. Easy installation, just cut out a square hole on the table and install the socket accordingly.



Detail Parameter:

ItemsEK9810
StyleDesktop pop up socket box
CatalogyElectric rotating interconnection box
ApplicationHigh-tier office, conference room
GroudingStandard grounding
MaterialAluminum alloy surface panel + plastic hanger
Rotating angle180 degree
ColorSilver / Silver Flash / Black
Panel processAluminum alloy wired drawing + anode oxidation process
Panel thickness2 mm
Panel size350mm * 130mm
Configuration2*universal power+2*USB charger+1*network+1*hdmi+1*wireless charger
Rated voltage110V ~ 240V AC
Rated current10 ~ 13 Amp
Frequency50 / 60 Hz
Operation Temperature-20°C / + 50°C
Package8 units/carton
OEM/ODMYes
Warranty12 month
